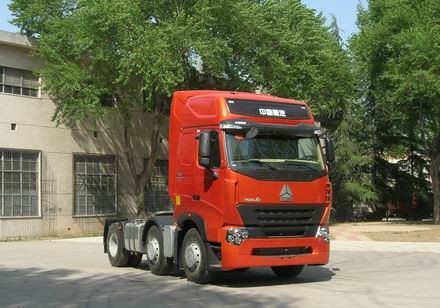

Sinitruk HOWO A7 6x4 prime mover tractor truck,336hp/371hp/420hp, towing 50ton, color optional

VEHICLE SPECIFICATION

DESCRIPTION

Truck Model

ZZ4257V3247

Type of Vehicle

TRACTOR TRUCK

Truck Brand

SINOTRUK -- HOWO

Driving Position

Left hand Driving

Fuel tanker capacity(L)

400

The Total Mass

50,000 kg

Dead Weight

8800 kg

Max speed(km/h)

102

Color

Optional

Chassis & Add Components

Frame Details

High-Strength U-profile ladder frame with section of 300*90*8mm and reinforced sudfram, all cold riveted cross members.

Dimension(L * W * H) (unloaded) (mm)

6800x2496x3800

Approaching angle / Departure angle (°)

16/70

Overhang (front / rear) (mm)

1500/725

Wheel base (mm)

3225+1350

Engine

Model

D12.42

Power

420hp/309kw.2000r/min

Emission

EURO II

Cylinder bore*stroke (mm)

126*155

Displacement(L)

11.596

Type

water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection

Kind of Fuel

Diesel

Fuel Consumption(L/100km)

30L/100km

Clutch & Gear Box System

Clutch

SINOTRUKΦ430mm diaphragm spring clutch

Gear Box

FULLER 12 speeds

Axles

Front Axle Model

HF7 axle. Capacity: 7000kg

Rear Axle

ST axle. Capacity: 2X 16000kg

Ratio of rear axle

4.42

Electrical System

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Brake System

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

ZF8098

Type

hydraulic steering with power assistance

Wheels & Tyres

Type

12R22.5

Material

Tubeless tires

Quantity

10+1 spare

Kin pin

50mm

Cabin

double sleeper with air conditioner, all-steel forward control,55ohydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
